Sensor system M

For the eddy current testing of round and profiled ferromagnetic material with encircling coils and electrical dc-field magnetization

Sensor system for testing ferromagnetic semi-finished products. The M sensor system was developed for the non-destructive testing for defects in ferromagnetic and austenitic semi-finished products requiring magnetization.

The main area of application is the continuous testing of tubes, rods, and wire with round or profiled cross-section combined with DEFECTOMAT test and evaluation equipment. The M sensor systems cover material diameters from around 1 mm to 240 mm.

Product highlights

Your advantages at a glance

  • Optional additional testing of austenitic and non-ferromagnetic metals
  • Test material diameter from 1 – 240 mm
  • Test coil and protective nozzle sizes increase in small increments for optimum test results
  • For testing with encircling coils and DEFECTOARRAY sensors
  • Iron enclosure detection combined with FERROMAT channel with DEFECTOMAT DA, DEFECTOMAT DI/CI

Technical information

Test material diameter: 1 mm – 240 mm
Defect types by defect detectability DIN EN ISO 15549: Transverse and point defects
Suitable for FOERSTER instruments: DEFECTOMAT DA, DEFECTOMAT CI / DI, DEFECTOMAT ECM
Suitable for FOERSTER coils: Encircling coils, segment coils, and DEFECTOARRAY sensors

Accessories

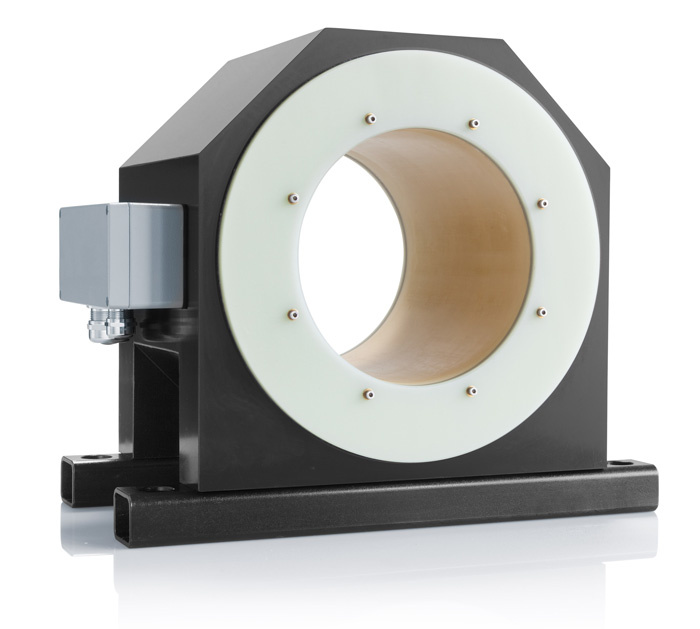

EMAG

Demagnetization unit for ferromagnetic wires, rods, and tubes

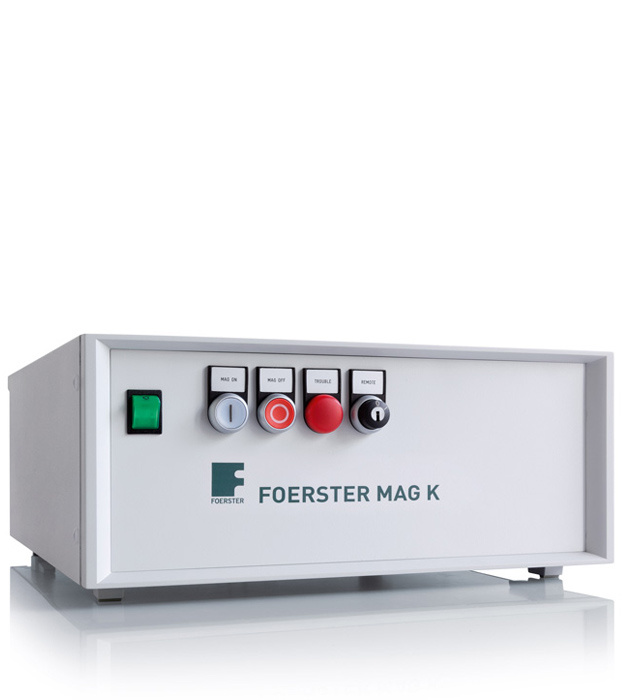

MAG

Magnetization supply for ferromagnetic wires, rods, and tubes
