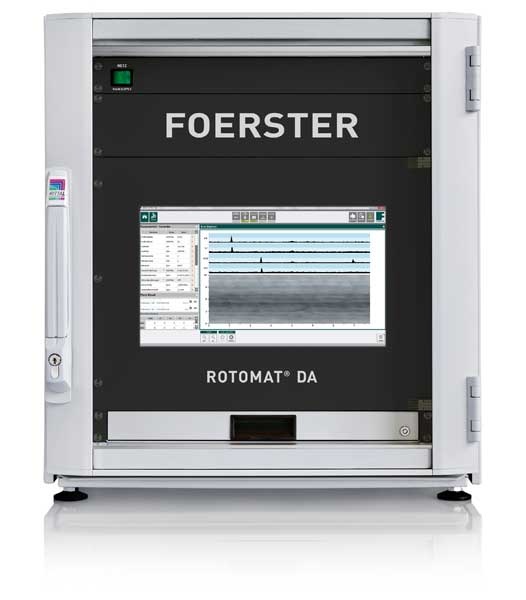

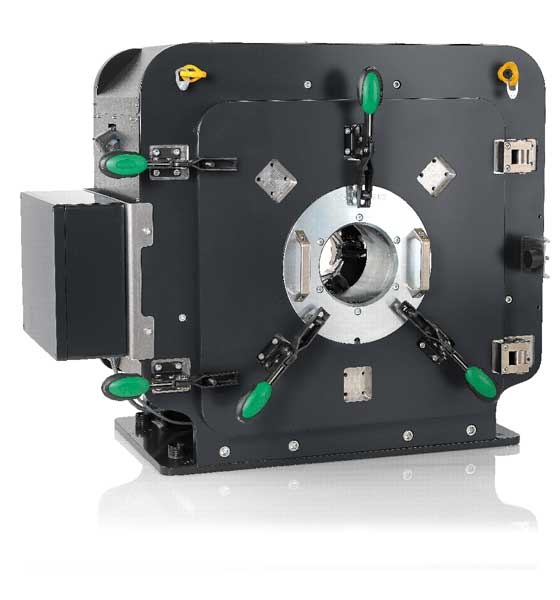

ROTOMAT / TRANSOMAT Product Family
DC magnetic flux leakage testing of tubes for longitudinal, transversal, oblique and point-shaped defects
Quality Assurance of Seamless and Welded Steel Tubes on a Completely New Level. With the new generation ROTOMAT DA and TRANSOMAT DA flux leakage test systems FOERSTER is setting new standards in continuous quality assurance of ferromagnetic steel tubes. The test systems enable the reliable detection of natural and longitudinal defects, as well as obliques with predominantly longitudinal orientation.
The miniaturization of sensors together with highly integrated electronic components dramatically increases the number of channels. This makes a more precise and finer scan of the surface possible, giving a more complete set of information regarding detected defects. The newly introduced C-Scan visualizes these defects in high-definition and real-time, resulting in a completely new evaluation of the tubes to meet rising quality requirements.
Product highlights
Technical information
| Range of diameters: | 20 mm – 520 mm |
| Range of wall: | 2 mm – 20 mm (thicker than 20 mm possible for exterior defect testing) |
| Tolerances: | in accordance with API 5 CT, L and DP |
| End consistency: | plain, non-cutted, or up-set ends; non-threaded or with couplings |
| Test piece temperature: | > 0 °C to 80 °C |
| Test speed: | 0.2 m/s to 3 m/s (depending on external diameter and wall thickness) |
