DEFECTOMETER

Mobile crack and hardness testing with eddy current for aircraft and automobile components, etc.

Compact mobile crack test instrument. The DEFECTOMETER is ideally suited for all situation requiring mobile crack testing. The unit has a defect resolution starting from just 20 µm and numerous automatic functions. The LED scale reading and LCD display ensure good legibility even in broad daylight or complete darkness. The long operating life of 35 h and USB port make it a perfect companion for manual crack and hardness testing and the separation of materials.

Product highlights

Your advantages at a glance

  • High sensitivity with a defect resolution from 20 µm
  • Simple operation
  • Automatic lift-off, zero, and tilt compensation
  • Warning for lifted off probe
  • Very good legibility of the LED scale display and the LCD display
  • 35-hour operation with activated backlighting
  • USB port for the visualization and documentation of the measurement results
  • Probes from earlier DEFECTOMETERs can be used

Technical information

Sensitivity range:  0 – 20 dB in increments of 0.5 dB
Defect indication: Red LED display and acoustic warning signal via speaker or headphones
Test speed: 0 – 0.15 m/s

Accessories

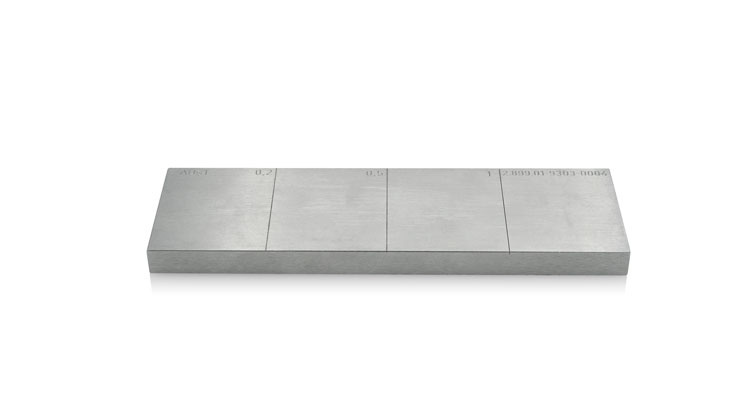

Reference standard crack standards - flat (plate)

Defect standards for testing for cracks

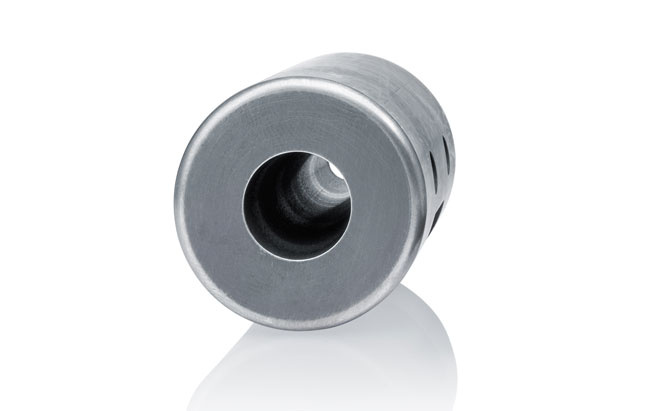

Reference standard defect standards - Borehole

Reference error for testing bores with rotary probe

Recalibration of mobile products

Recalibration guarantees the accuracy and quality of your test and measurement values
