TCM Product Family
One platform for all eddy current testing tasks

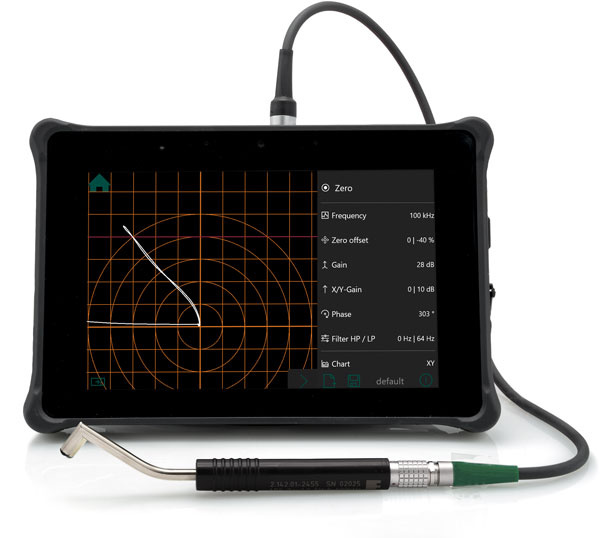

Designed for multipurpose use. Mobile testing often requires a variety of testing systems. FOERSTER’s versatile new TCM serves as a unifying platform for established eddy current testing products. Deep-penetrating low frequency (LF) testing with DEFECTOSCOP for measuring residual wall thickness and high frequency (HF) testing with DEFECTOMETER for detection of the smallest cracks are now integrated in a single device.
The TCM platform also covers conductivity measurement of non-ferromagnetic materials. The intuitive touch interface allows the user to select the individual tasks via corresponding apps. Automatic probe recognition helps you set the optimal test and measurement parameters to achieve the best possible results.
Product highlights
Technical information
| Display: | 8.0“ touchscreen, 1280 × 800, 800 nits, readable in sunlight Switch between usage with finger or gloves |
| Protection: | IP 66, 1.5 m drop height |
| Weight: | 1.3 kg |
| Dimension: | 227 mm × 150 mm × 51 mm (L × W × H)) |
| Temperature: | -20 °C to +50 °C |
| Power: | Battery time: 6h |
| Camera: | Back camera with 8.0 MP, front camera with 2.0 MP |
| Storage: | 128 GB SSD |
| Connection ports: | 19-pin LEMO, Thunderbolt 4, USB 3.2 Gen2 (type C), microSD reader |
| Audio: | Audio in/out (combo jack) |
| Documentation: | Save/export raw data, screenshots, reports |
| Embedded Help: | Find information on every setup and dialog for fast and save usage |
| Languages: | English, German, Spanish, Japanese, Chinese, Czech, Italian, French |
Related products

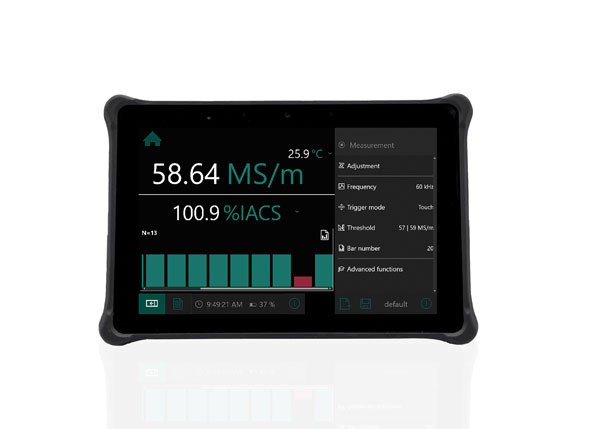

SIGMATEST TCM
